Please note: Bystronic machines could be equipped also with Promecam Euro clamping system.
We are able to assist the customer to recommend tools according to his parts as well as to prepare the sequence or quotation for special shapes if necessary.

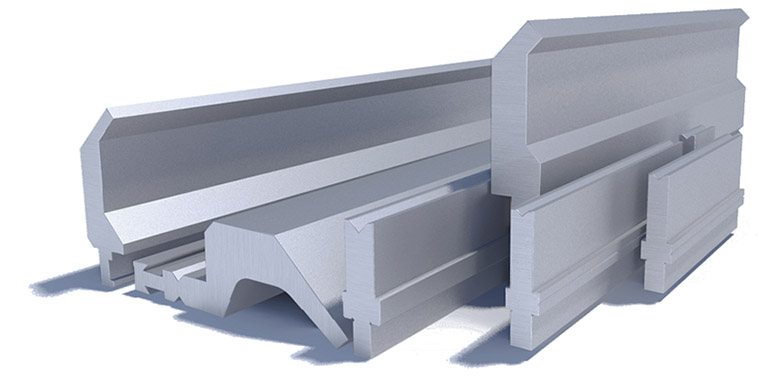

Standard Beyeler - Bystronic dies are interchangeable with Trumpf system or Wila system die clamping system so it is possible to use H100 dies if necessary.
The Bystronic System R and RFA are mirrored systems, meaning that the upper tooling (punches) can be rotated and used on the opposite side. According to the official documentation, the maximum force limit for the R and RFA systems is 160 t/m when the force is transferred through the head of the punch. However, a higher force capacity may be possible when the force is transferred through the shoulders of the punch.
Sizes and sets:
- Solid pieces 100, 500 mm
- Solid pieces 1000 mm (for dies only)
- 550 mm segmented set for punches. Segmented set includes pieces: 100 horn left, 20, 25, 30, 35, 40, 200, 100 horn right
- 550 mm segmented set for dies. Segmented set includes pieces: 200, 25, 25, 30, 35, 40, 100, 100 mm
- 1100 mm segmented set for dies. Segmented set includes pieces: 10, 15, 20, 30, 40, 50, 60, 75, 100, 100, 200, 400 mm
