JetClamp punchholders for press brakes Promecam - EURO

JetClamp punchholders are used for the manual (mechanical) quick fixation of top tools (punches) for Promecam - EURO system. Our punchholder is the best possibility for appreciable reduction of the time of the operator when it is necessary to replace or adjust the bending tooling.
These punchholders could be installed to every press brake new or used with the replacement of all standard punchholders or partially.

JetClamp punchholders for press brakes Promecam - EURO

The use of quick change punchholders is actual with the flexible and changeable production and use of multistep programs and sectional tooling.
Fixation is solely mechanical without any pneumatic or hydraulic systems.

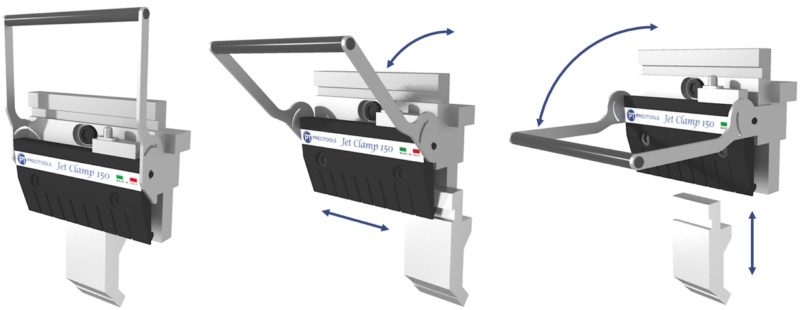

JetClamp punchholders are used with 3 conditions:
1 - closed completely, fixed punch;
2 - half-opened for lateral change of tooling;
3 - 90 degrees opening for front change of tooling from the bottom.

Main details

    150 or 200 mm width
    Intermediates H100 (Schiavi execution), H120 (Amada execution)
    Single or double (including back positioning) clamping
    Effective fixation even for 10 mm section punches
    Nickel plating of components
    Mechanical lock, no any connection necessary
    Ergonomic design and long life use
    No need of special force, light movement and fixation
    Use with every press brake with bending tools of Promecam system

Additional

Press brake bending tonnage and force calculator

Press brake bending tonnage and force calculator

Our online tool for quick calculation of necessary force for press brake and recommended V-die opening to execute the job.
