Punching tools Trumpf


We offer our customers a complete range of punching tooling solutions for the Trumpf Style tooling system, which is used on punching machines and punching presses such as Trumpf, HACO, Omes, Ilci, Boschert, Pullmax, Euromac, and others.
Our tools can also be used with FPL-Technology machines, press brakes, and various notching machines through the use of adapters.

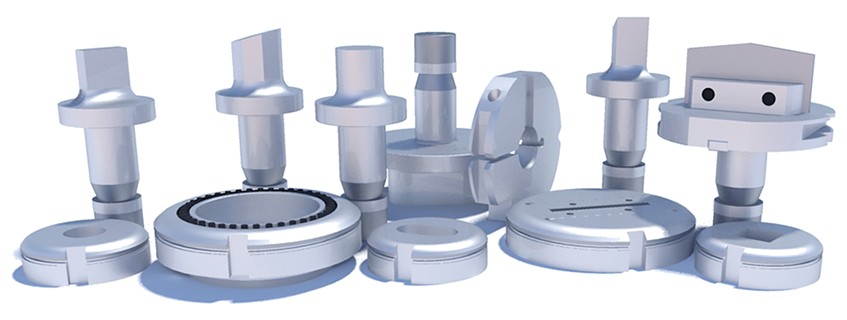

We supply all types of tools — punches, dies, strippers, rings, adapters, inserts, etc. — for all forms from Size (Gr) 0 to 3, in both standard and special shapes, including forming tools, cluster tools, and more.
We can assist customers by recommending suitable tools based on their parts, or by providing the necessary consumables to replace tools from other manufacturers.

Supplies:
  • Inserts, standard and Heavy Duty punches 0A/0B, 1, 2, 3 Size
  • Dies 1, 2, 3 Size
  • Standard and whisper punches
  • Standard and PU (polyurethane) strippers
  • Punches, dies and universal strippers for Multitool (Revotool) 4-, 5-, 6-, and 10-station systems
  • Alignment rings Size 1, Size 2, Heavy Duty
  • Slitting tools 5 x 30, 5 x 56, 5 x 76,2 mm
  • Slitting tools with polyurethane inserts for cutting near formings
  • Cartridges / cassetes including die plates
  • Additional adapters, inserts, brush dies, special tools

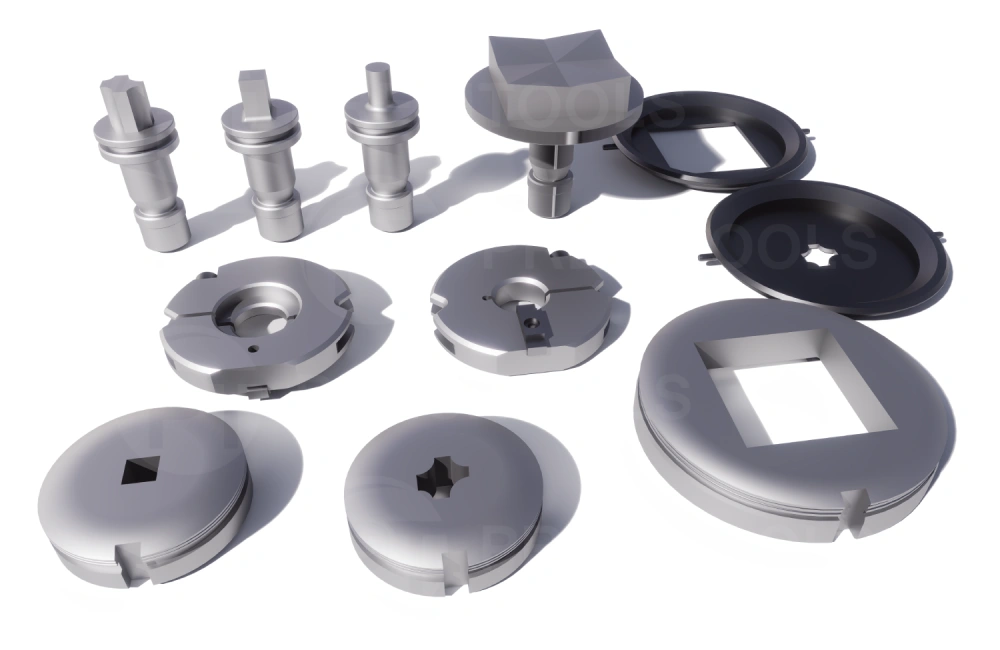

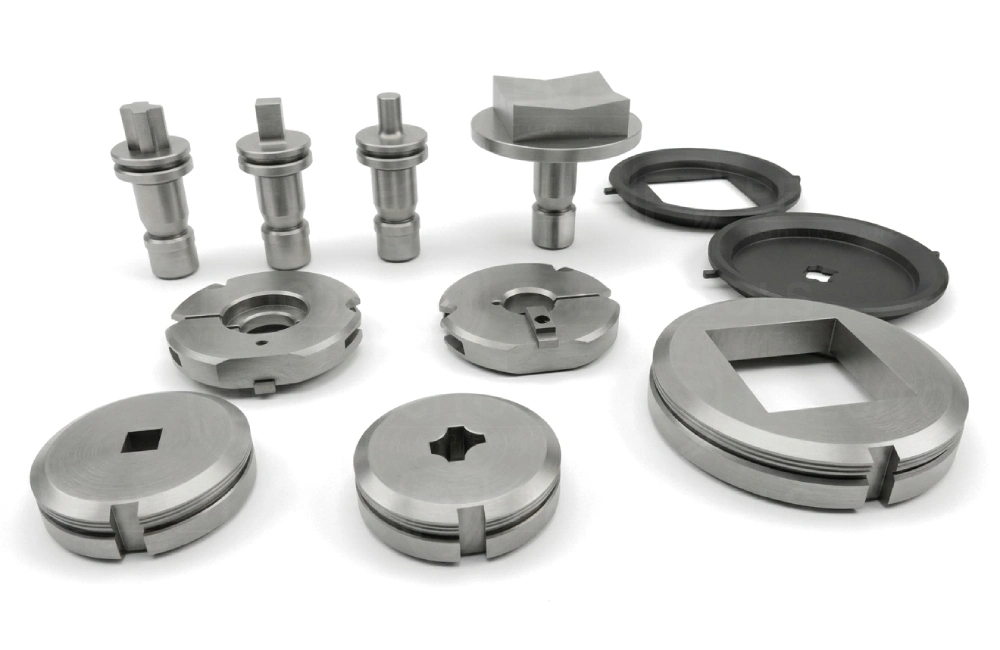

Various Trumpf punching tools for Trumpf punching machines
Our tools are made from high-quality tool steels, with the possibility to add optional types of coatings for different materials to ensure low wear and perfect tooling endurance. Precision manufacturing allows us to maintain the best tolerances and to perform any form upon request.
Thanks to engineering department, we have strong experience with special applications, deformations, and various fields of punching technology.
We can supply consumables for holders or from other manufacturers according to original standards, providing optimal quality from an alternative non-original tooling supplier.
For Trumpf tooling, we support all modern machines as well as older machinery and short punches up to the Minimatic system. For dedicated materials, we can supply brushed dies and adapters.
We can work with any specialized request, including forms, tooling orientation, additional slots for dies, customized dimensions for slitting tools, polyurethane strippers, countersink tooling even in Multitool heads, and much more.

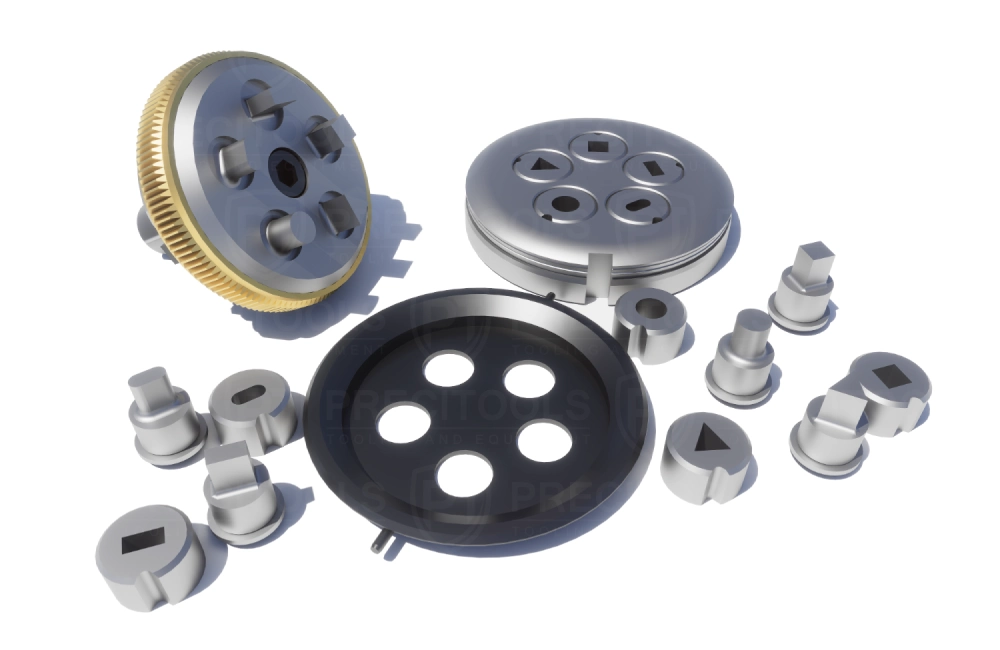

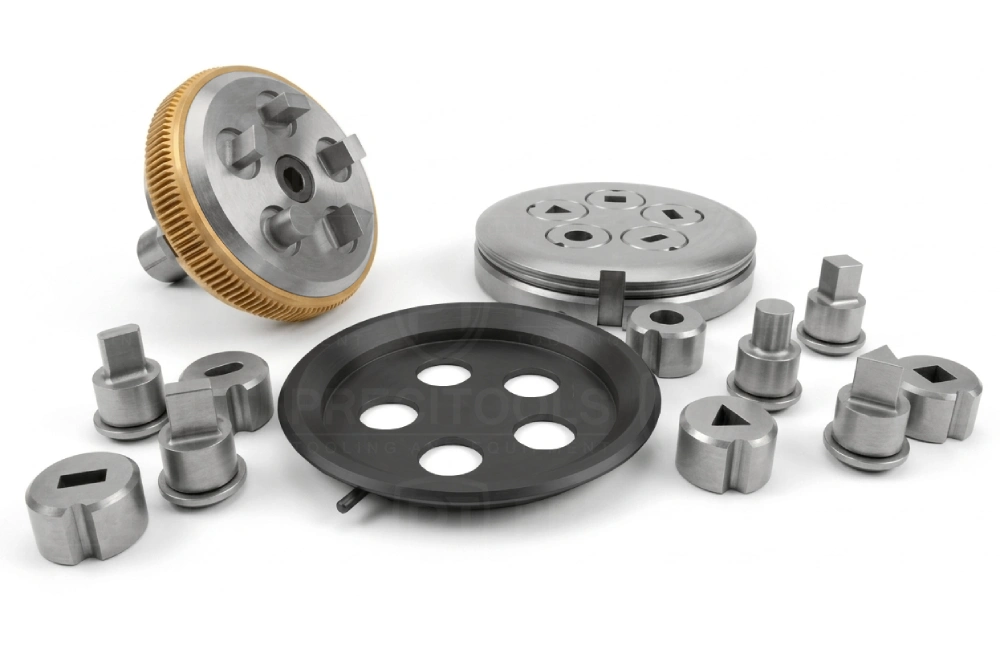

Trumpf Multitool 5 station for Trumpf punching machines
