We provide high-quality polyurethane protective bending film designed to prevent or significantly reduce scratches and marks during metal bending processes on press brake. When sheet metal is bent, friction occurs between the metal and the shoulders of the bending die, often leaving visible marks on the external side of the bend.
For applications involving polished, satin-finished, or ground metals, these imperfections can be a major concern—especially when the final parts must have a flawless aesthetic, such as metal furniture panels, kitchen hoods, refrigerator panels, and other kitchen equipment. Traditionally, removal of these marks requires additional processing, labor, and time-consuming steps, increasing production costs.

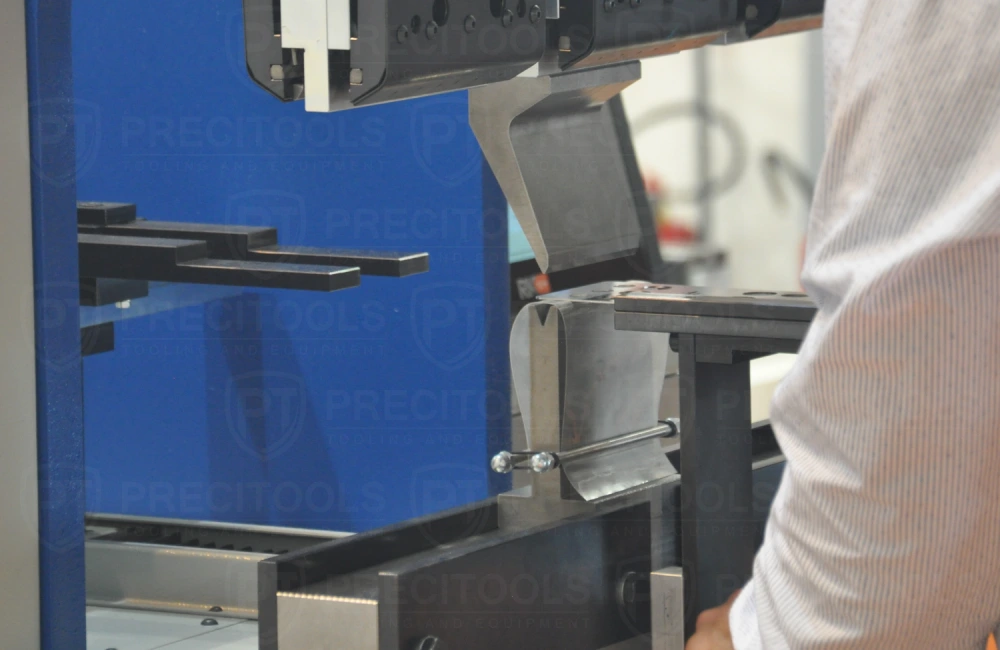

Our bending film acts as a protective layer, placed directly on the bending die, creating a barrier between the die and the metal part. Available in various thicknesses, it can be tailored to match different metal gauges, ensuring optimal protection during bending.
The film is flexible, durable, and highly resistant, making it suitable for continuous use in daily production. It ensures a smooth, scratch-free surface on every part. Unlike other methods, our bending film is universal, cost-effective, and ready to use with your existing tooling—no additional equipment or installations are required.
Our bending film is compatible with all materials and works seamlessly with any press brake tooling system, making it a versatile solution for every bending application.

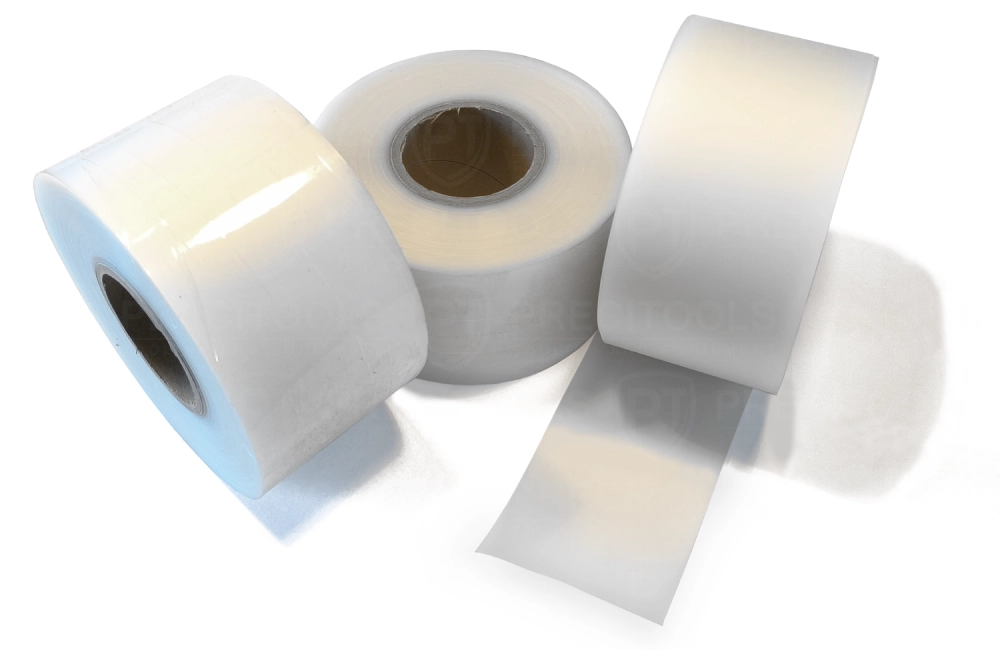

Bending film, bending foil for press brake bending
- For any materials as well as painted, coated, grinded, satinized etc.
- Cost-effective solution
- Elimination of post-processing costs
- Extends the life of press brake tooling and reduces friction
- For any press brake, flexible methods of installation
- Suitable for different production environments
We also prepared Questions and Answers page where you can find all typical questions about bending film. If you have any questions about using the bending film, please read the Q&A section before contacting us.
Theoretical recommendations to use:
Supplies (W as width; S as thickness of the film; L as the length of roll):
- thickness 0,4 mm - up to 1 mm of material thickness
- thickness 0,5 - 0,6 mm - up to 2 mm of material thickness
- thickness 0,8 mm - up to 3 mm of material thickness
Supplies (W as width; S as thickness of the film; L as the length of roll):
- 100 mm x 0,40 mm x 54 mt
- 150 mm x 0,40 mm x 54 mt
- 100 mm x 0,50 mm x 45 mt
- 105 mm x 0,50 mm x 33 mt
- 150 mm x 0,50 mm x 45 mt
- 100 mm x 0,60 mm x 45 mt
- 150 mm x 0,60 mm x 45 mt
- 95 mm x 0,80 x 33 mt
- 100 mm x 0,80 mm x 18 mt
- 150 mm x 0,80 mm x 18 mt
- 100 mm x 1,00 mm x 30 mt
- 150 mm x 1,00 mm x 30 mt
- 200 mm x 1,00 mm x 30 mt
- Thickness 2 mm under the request
