Punching tools Thick Turret, Multitool

We offer our customers a complete range of punching tooling solutions for turret punch presses with Thick Turret system and Multitool heads for machines as Amada, Durma, Ermaksan, Baykal, Finn Power, Prima Power, Yawei, Schiavi, and others.
Together with turrret punch presses Thick Turret system tooling is used in the punching and slitting lines of various manufactures to proceed the sheet metal from coil.

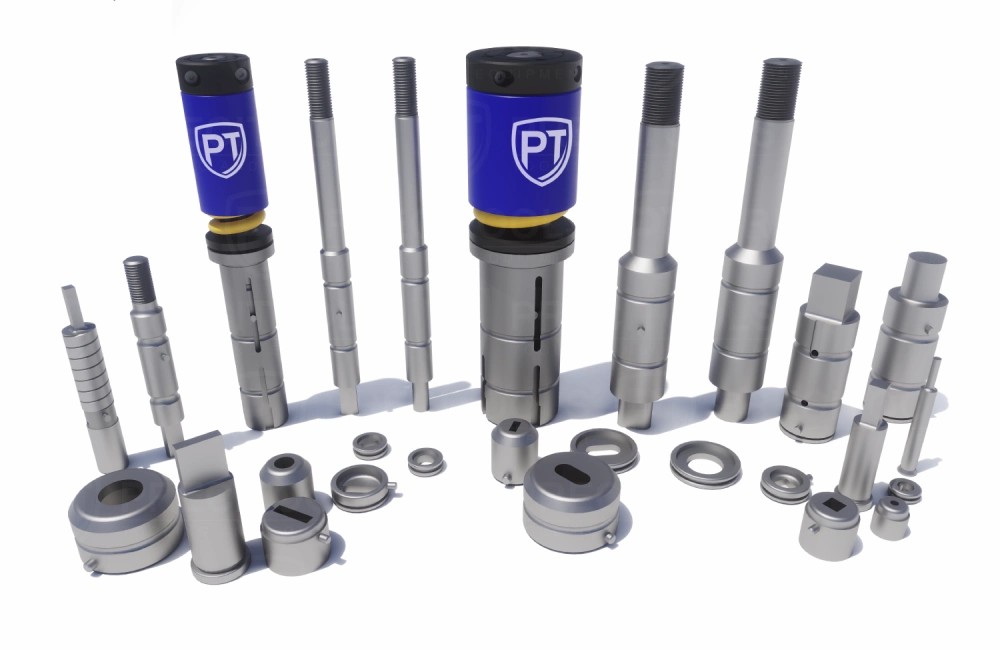

We supply all main range of the tools for A, B, C, D, E station (punches, dies, strippers) including the guides (holders) and main Multitool tooling replacements. For individual requests we supply various special form tooling and forming tools for countersink, emboss, upforming, rib forming, louvers, cluster punching for performation works etc.
We can assist customers by recommending suitable tools based on their parts, or by providing the necessary consumables to replace tools from other manufacturers.

Supplies:

• Punches, strippers and dies A, B, C, D, E station
• Guides, holders for A, B, C, D, E station
• Support of various systems from different manufacturers (Metric, Standard, WLS 90, HP, Mate etc.) Standard or lubricated, ABS, air-blow tooling
• Punches, dies and strippers for MT Multitool system
• Punches, dies and strippers for XMT / XMTE Multitool system
• Closed guides or bolted strippers for precision applications
• Tools for punching near clamps; slitting tools with holders and inserts
• Alignment tools
• Ball and brushed dies

Punching units

Together with our punching tooling, we offer C-frame punching units designed to work with dedicated special tooling or with standard Thick Turret tooling, mainly B-Station tooling, including forming tools. These units can be integrated with standalone hydraulic power stations or combined into production lines using multiple punching units. They can also be integrated into other equipment with force transmission systems, including press brakes.
This configuration makes it possible to perform multiple operations in a single cycle — not only bending, but also the complete production of a part, including angle pre-cutting, hole punching and forming operations.
A line of multiple punching units provides a highly productive solution for producing hole patterns and profiles with maximum speed and efficiency.
The use of standard Thick Turret tooling also ensures fast and convenient punch and die changes, while allowing the use of tooling supplied by independent manufacturers. Combined with an automatic backgauge of the press brake and a professionally configured installation incorporating multiple punching and bending stations on a modern machine, this solution can significantly expand production capabilities.
For certain parts and applications, it can substantially reduce production time by combining several operations into a single, highly efficient process.
